WEB API Description

1 Public

• Get the token and pass it in the header with the key authorization.
• The client must send the form data as POST.
• The server returns json data in a fixed format.

for example

Figure-1 get token

Figure-2 call API with token

1.1 Login

1.1.1 Getting TOKEN /auth/login

• Create a token, and in other interfaces that require authentication, pass this token value in the header with the key authorization. The validity of the requested token will be automatically extended in the background by 10 minutes each time.
• With the exception of some login-free interfaces, all interfaces should be accessed using the token

Client→Server Request

KEY	VAL	Default	Remark
username	string	–	Account number (interface must be passed, for verification)
password	string	–	Password (mandatory for interface, for authentication) md5 encryption is required according to the rule: password + ‘-‘ + account md5(password-username)

For example.

username:admin
password:32ff9ee7e841b26a966870c144fdcaec

Server→Client Response

KEY	VAL	Default	Remark
uri	string	–	Returns the name of the URI corresponding to the request
code	int	–	Success or failure identifier (refer to internationalization.md)
msg	string	–	Information Alerts
data	array	–	Data content, as defined by the API function
access_token	string	–	token, used to request the API.
expires_time	string	–	The token validity time will be automatically extended by 10 minutes in the background after each request to the interface.
client	string	–	user information

For example.

{
"uri": "auth/login",
 "msg": "",
"code": 200,
 "data": {
         "access_token": "Z6Irivg91M6XfE4HFYjRuAwykb3Q4KmW",
          "expires_time": 1733131658,
          "client": "admin" }}

1.1.2 Logging out /auth/logout

KEY	VAL	Default	Remark
token	string	–	Token obtained at login

For example.

token:Z6Irivg91M6XfE4HFYjRuAwykb3Q4KmW

Server→Client Response

{ "uri": "auth/logout", "msg": "Login out success! "msg": "Login out success!", "code": 200, "data": []} "data": []}



2 SMS Management Class

2.1 Sending text messages

2.1.1 Getting ports /sms/get_valid_spans

Get all ports and request an available port to send SMS based on the port state

Client→Server Request

Server→Client Response

DATA_SUBKEY	VAL	Default	Remark
port	int		Port value (used when sending SMS)
port_name	string		port name
status	int		Status values. 1: available; 0: not available

Response.

{ "uri": "sms/get_valid_spans", "msg": "", "code": 200, "data": [ { "port": 1, "port_name": 1, "port_name". "port_name": "gsm-1", "status": 0 } ]}



2.1.2 Send SMS /sms/send

Client→Server Request

KEY	VAL	Default	Remark

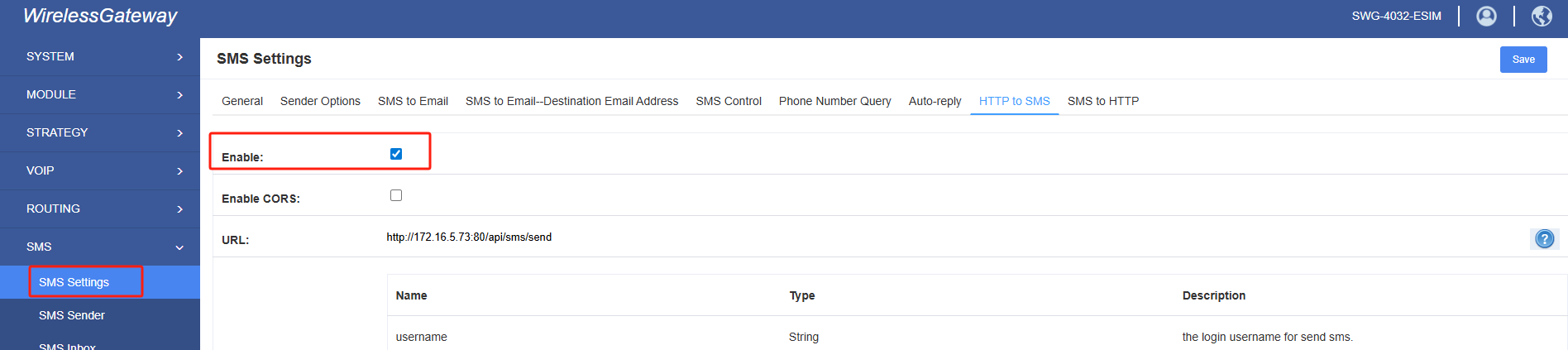

username	string	smsuser	Account number. Value can be set on SMS—>SMS Settings—>HTTP To SMS page
password	string	d57ec941cbebb5da18b7b1a9a7bf81cb	Password (mandatory for interface, for authentication) md5 encryption is required according to the rule: sendsms + ‘:’ + password md5(sendsms:smspwd) . for example, sendsms:smspwd—>d57ec941cbebb5da18b7b1a9a7bf81cb
spans[]	array	–	port value
phonenumber	string	–	sender’s number. use , to split multiple numbers
message	string	–	Text message content
mode	int	0	Status values. 0: Asynchronous sending 1: Synchronous sending

For example.

spans[]:1
phonenumber:10086
message:ye
mode:0



Server→Client Response

KEY	VAL	Default	Remark
type	string		Status values. 0: Asynchronous sending 1: Synchronous sending
msg	string	–	Text message content
num	string	–	sender’s number
flash (computing)	string	–	Whether to enable flash
id	string	–	SMS id
port	array	–	port value

For example.

{ "uri": "sms/send", "msg": "", "code": 200, "data": { "send_list": { "type": "asyncsms", "msg": "ye", "num": "10086", "flash": "0", "id": "319162de "id": "319162de-d23a-9f6a-167c-294c9b062f24", "port": "1" }, "reject_list": "" }}



2.2 SMS status

2.2.1 Getting the status of an SMS (outbox) /smsoutbox/get

Client→Server Request

KEY	VAL	Default	Remark
current_page	int	1	Page turn, current page
current_counts	int	10	Number of single page displays
phone_number_filter	string	–	mobile telephone number
start_datetime_filter	datetime	–	Start time, format: YY-MM-DD H:i:s
end_datetime_filter	datetime	–	End time, format: YY-MM-DD H:i:s

For example.

current_page:1
current_counts:10
phone_number_filter:10086
start_datetime_filter:2024-11-21 09:59:20
end_datetime_filter:2024-11-21 09:59:20



Server→Client Response

DATA_SUBKEY	VAL	Default	Remark
port_name	string		port name
phonenumber	string		mobile telephone number
time	datetime		transmission time
message	string		Text message content
status	string		Status values. There are FAILED, SENT, DELIVERD
current_page	int		current page
current_counts	int		Number of single page displays
counts	int		Total pages

{ "uri": "smsoutbox/get", "msg": "", "code": 200, "data": { "current_page": 1, "current_counts": 10, "counts": 1, "sms": [ { "port_name": "lte-16", "phonenumber": "10086", "time": "2024-10-28 16:18:22", "status": "DELIVERD(0)", "message": "bj" } ] }}



2.2.2 Getting incoming SMS (inbox) /smsinbox/get

Client→Server Request

KEY	VAL	Default	Remark
current_page	int	1	Page turn, current page
current_counts	int	10	Number of single page displays
phone_number_filter	string	–	mobile telephone number
start_datetime_filter	datetime	–	Start time, format: YY/MM/DD H:i:s
end_datetime_filter	datetime	–	End time, format: YY/MM/DD H:i:s
flag	string	–	all:get all sms unread:get unread sms read:get read sms

For example.

current_page:1
current_counts:2
phone_number_filter:1065813919
start_datetime_filter:2023/11/21 09:59:20
end_datetime_filter:2024/11/21 09:59:20
flag:all



Server→Client Response

DATA_SUBKEY	VAL	Default	Remark
id	string		SMS id
port_name	string		port name
current_page	int		current page
current_counts	int		Number of single page displays
counts	int		Total pages
phonenumber	string		mobile telephone number
time	datetime		transmission time
message	string		Text message content
read	string		Number of read SMS messages under the current filter
unread	string		Number of unread SMS messages in the current filter

{ "uri": "smsinbox/get", "msg": "", "code": 200, "data": { "read": 10, "unread": 0, "unread": 0 "unread": 0, "current_page": 1, "current_page": 1, "counts": 5, "current_counts": 2, "read": 10, "unread": 0, "current_counts": 2, "sms": [ { "port": "16", "id": 13, "port_name": "gsm-16", "phonenumber": "10086", "time": "2024/10/28 16:18:22", "message":"\ufeffEsteemed customer: your local number is 18818591275, belonging to the Global Link brand. For more package details, please click https://dx.10086.cn/3IT2\ufeffFg to download the "China Mobile" APP to inquire. China Mobile]" }, } { "port": "16", "id": 12, { "id": 12, "port_name": "gsm-16", "phonenumber": "1065813919", "time": "2024/10/27 14:34:32", "message":"\ufeff[Guangdong Mobile] September fun bill has arrived https://y.10086.cn/t/kxyTfJ15eGAyu1f\r\n rejected please reply R [China Mobile 1\ufeff39 mailbox]" } ] }}



2.2.3 Get push SMS status settings /smsoutbox/get_config

Client→Server Request

Server→Client Response

DATA_SUBKEY	VAL	Default	Remark
enable	int		Push switch. 1 On 0 Off
reports_enable	int		SMS report switch. 1 On 0 Off
results_enable	int		SMS result switch. 1 On 0 Off
url_http	string		url_http key name
url_host	string		url_host key name
url_port	string		url_port key name
url_path	string		url_path key name
url_from_num	string		url_from_num key name
url_to_num	string		url_to_num key name
url_portname	string		url_portname key name
url_message	string		url_message key name
url_time	string		url_time key name
url_imsi	string		url_imsi key name
url_status	string		url_status key name
url_user_defined	string		url custom key name

{ "uri": "smsoutbox/get_config", "msg": "", "code": 200, "data": { "enable": 1, "reports_enable": 1, "results_enable": 1, "url_http": "http", "url_host": "172.16.2.43", "url_port": "80", "url_path": "test.php", "url_from_num": "phone_number", "url_to_num": "port", "url_portname": "portname", "url_message": "message", "url_time": "time", "url_imsi": "imsi", "url_status": "status", "url_user_defined "url_user_defined": "" }}



2.2.4 Save push SMS status settings /smsoutbox/set_config

Client→Server Request

KEY	VAL	Default	Remark
			References/smsoutbox/get_config

For example.

enable:1
reports_enable:1
results_enable:1
url_http:http
url_host":172.16.2.43
url_port:80
url_path:test.php
url_from_num":phonenumber
url_to_num:port
url_portname:portname
url_message:message
url_time:time
url_imsi:imsi
url_status:status
url_user_defined:id=id

Server→Client Response

{ "uri": "smsoutbox/set_config", "msg": "", "code": 200, "data": []}



3 Service category

3.1 Obtaining status

3.1.1 Getting the channel state /service/chan_state

Client→Server Request

Server→Client Response

DATA_SUBKEY	VAL	Default	Remark
idle_channels	string		Total Idle Channels
channel_status	string		Channel status; left column indicates channel number; right column: 1 indicates unregistered; 0 indicates registered

{ "uri": "service/chan_state", "msg": "", "code": 200, "data": { "idle_channels": 0, "channel_status": { "1": "1", "2": "1", ..." 32": "1" } }}



3.1.2 Get SIM status and IMSI number. /service/simstatus

Client→Server Request

KEY	VAL	Default	Remark
port	int	1	Port number; 0 to get all port status; greater than 0 to get specified port status

For example.

port:0

Server→Client Response

DATA_SUBKEY	VAL	Default	Remark
key	string		port number
imsi	string		IMSI number
status	string		SIM card status

{ "uri": "service/simstatus", "msg": "", "code": 200, "data": { "1": { "imsi": "", "status": "Unknown Network Status". "status": "Unknown Network Status" }, "data". "2": { "imsi": "", "status": "Unknown Network Status" }, "2": { "status": "Unknown Network Status" }, ..." 32": { "imsi": "", "status": "Unknown Network Status" },..." 32": { "imsi": "", "status": "Unknown Network Status" },... "status": "Unknown Network Status" } }}



3.2 USSD

3.2.1 Sendussd /service/sendussd

• No token is required, but provide the account password filled in the page.WEB->SMS->USSD
• Return results can be selected on the page json/string/null
• Processing a send request returns the status value sent

Client→Server Request

KEY	VAL	Default	Remark
username	int	1	Authentication of the username is required when sending USSD, configured in the Web GUI
password	int	10	The password needs to be authenticated when sending USSD, configured in the Web GUI
message	string	–	Contents of the sent USSD
port	int	–	The card on the channel must be registered. For multiple ports, splicing
timeout	int	–	Send USSD timeout
id	int	–	Associate this ID when receiving USSD results

For example.

username:ussduser
password:ussdpwd
message:*#301
port: 3,4
timeout: 500
id: 1



Server→Client Response

DATA_SUBKEY	VAL	Default	Remark
message	string		Content of ussd sent
report	object		List of Reports
port	string		port number
time	string		time of sending (e.g. of a message)
id	string		Associate this ID when receiving USSD results
result	string		Status of sending: sent/not ready/not select/other

{ "uri": "service/sendussd", "msg": "", "code": 200, "data": { "message": "*#301", "report": { "3": { "port": "3", "time": "2024-05:07:58", { "time": "2024-12-05 07:12:58", "id": "1", "result": "not ready" }, "4": { "port": "4", "time": "2024-05-07:07 "time": "2024-12-05 07:12:58", "id": "1", "result": "not ready" } } }}

{ "uri": "service/sendussd", "msg": "", "code": 200, "data": "message: *#301\n--record 3 start--port: 3\ntime: 2024/ntime "data": "message: *#301\n--record 3 start--port: 3\ntime: 2024-12-05 07:12:26\nid: 1\nresult: not ready\n--record 3 end----record 4 start--port. 4\ntime: 2024-12-05 07:12:26\nid: 1\nresult: not ready\n--record 4 end--"}



3.2.2 Pushing the results returned by the USSD

• This is the ussd to http interface, you need to build your own http/https server to receive the push content.
• Parameter configuration from the page (WEB->SMS->USSD) The name on the http/https server is the same as the name on the Web GUI.
• The device will push the result returned by USSD in GET mode according to the filled parameters, and the server itself will receive the filled parameters to get the
• You can compose a URL by splicing the test data according to the rules, and access the URL to test whether your server receives the parameters normally.
• Push services are network dependent, make sure your device has access to http/https servers.

Client→Server Request

KEY	VAL	Default	Remark
path	string	–	(Required) Receiving tool and path
param1	string	–	(Required) The name of the channel number; by this name the channel number is indicated; for example, configure port
param2	string	–	The name of the USSD content; by this name the USSD content is represented; for example, configure message
param3	string	–	The name of the time; by this name the USSD receives the time; for example, configure time
param4	string	–	The name of the status; by this name the result of sending the SMS status is indicated; for example, configure status
param5	string	–	ussd returns the name of the code result; by this name the USSD code result value is indicated, e.g., configuration code
param6	string	–	The name of the id; by this name a unique value is indicated, associated with the id at the time of sending.
UserDefined	string	–	User-defined parameters

For example.

http://ip:port/path?param1=${port}&param2=${message}&param3=${time}&param4=${status}&param5=${code}&param6=${ id}[&{UserDefined}]



web.

domain: http://172.16.2.43
path: receiveussd.php
param1: my_port
param2: my_message
param3: my_time
param4: my_status
param5: my_code
param6: my_id
UserDefined.

URL:

http://172.16.2.43/receiveussd.php?my_port=${port}&my_message=${message}&my_time=${time}&my_status=${status}&my_ code=${code}&my_id=${id}
